Flow Drill Supplier

Save time and cost with every retention and thread

http://www.greatcutting.com/        Please check our company's webpage, which can help you learn more about us.

Flow drilling is a non-cutting method of drilling holes in metal by applying high pressure and frictional heat to melt the material.

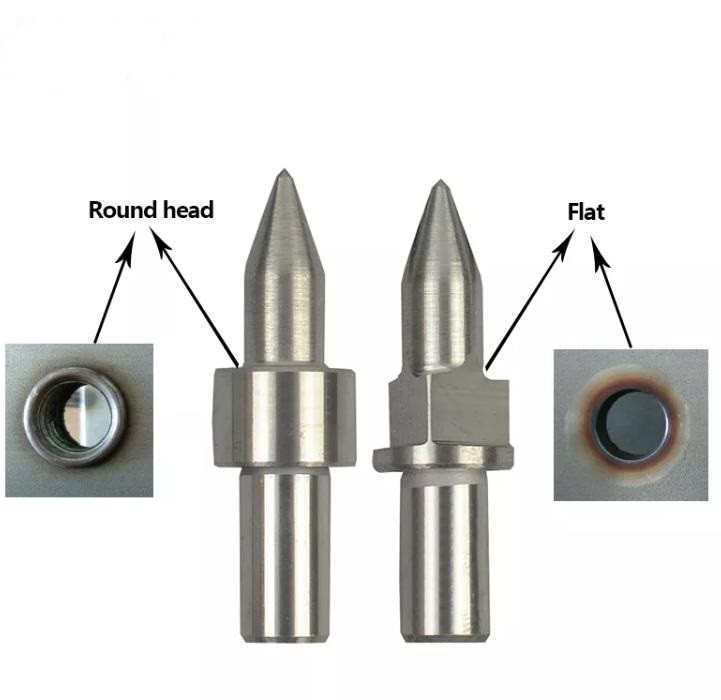

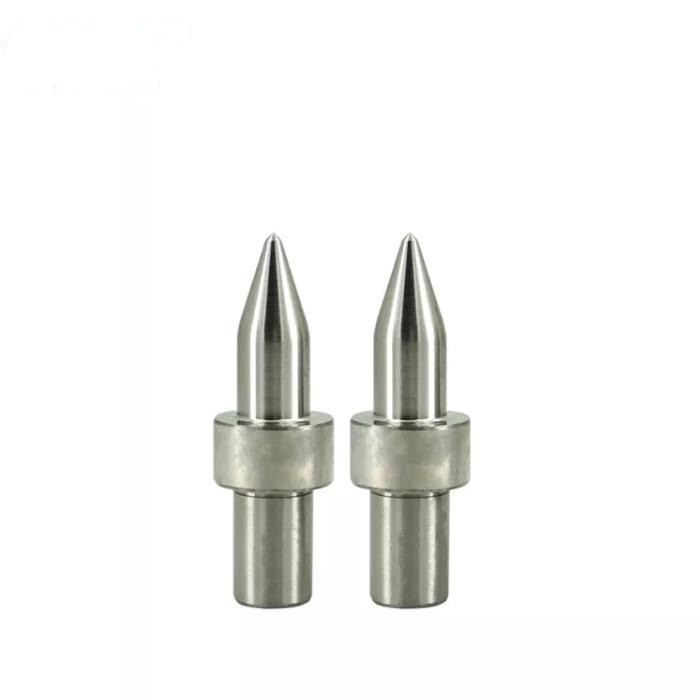

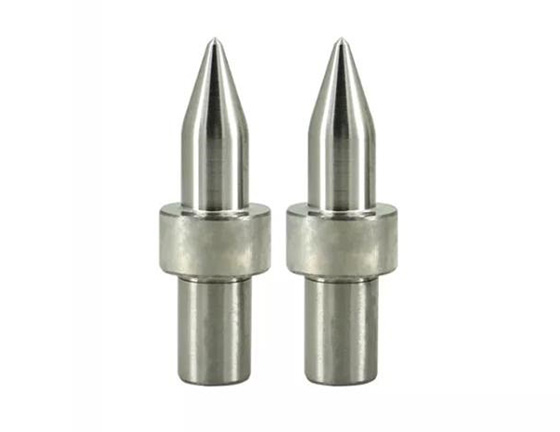

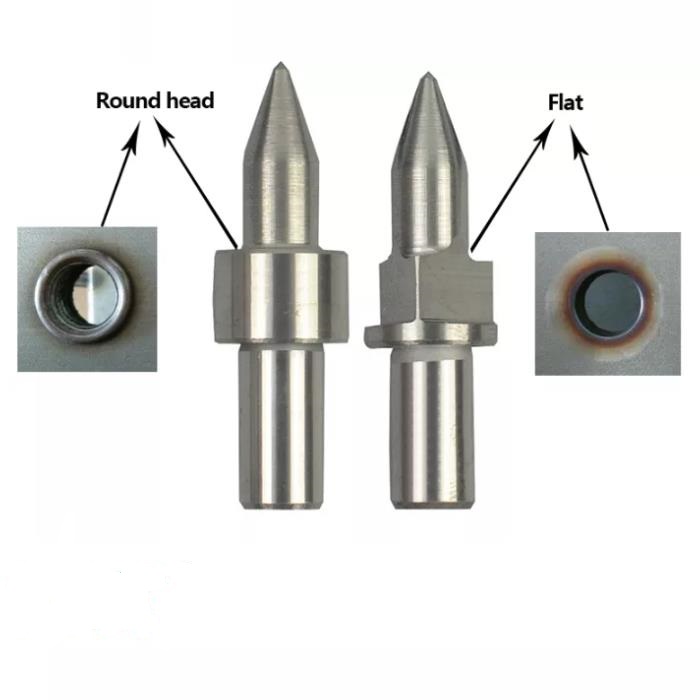

Features: 1.   Circular Friction Drill (Standard Type Friction Drill) : The friction drill penetrates the workpiece while pulling the bushing, forming a convex ring. The boss surface is suitable for thread sealing or nut washers.

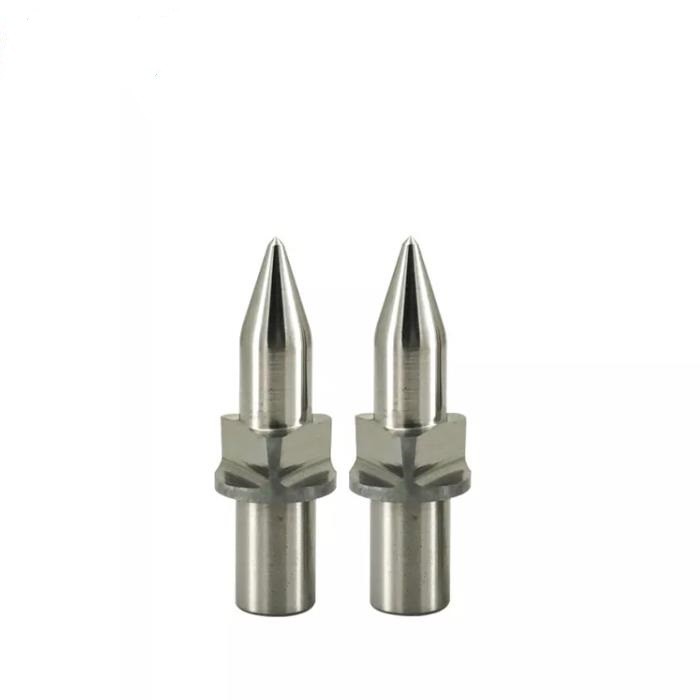

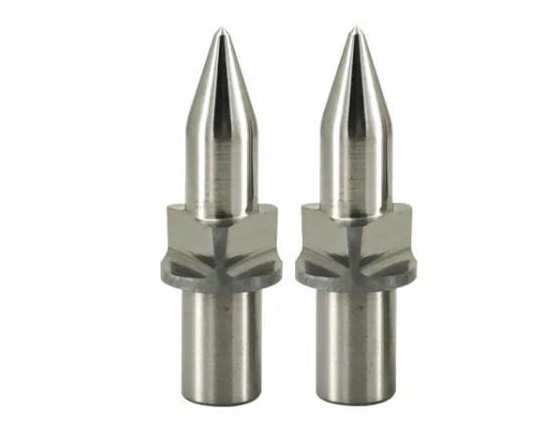

2.   Flat type friction drill (designated flat friction drill) : The middle part of the drill bit is ground with stepped melt-cutting blades. The flow drill penetrates the workpiece and stretches, forming a convex surface on the workpiece (ring milling and chamfering), making the surface smooth.

Material : Tungsten Steel

Usage Scenario : Metalworking Wide application, high efficiency and energy saving Description: Category: Drill Bit Size: M3 (Ø2.7mm) / M4 (Ø3.7mm) / M5 (Ø4.5mm) / M6 (Ø5.3mm) / M8 (Ø7.3mm) / M10 (Ø9.2mm) / M12 (Ø10.9mm) / M14 (Ø13mm)

Includes:

1 pc   Drill Bit

We have popular sizes such as M4/M5/M6/M8/M10/M12 in stock, so we can accept same-day delivery. If you have any questions, please let me know.
