Titanium CNC Machining

Titanium CNC Machining Description:

Titanium alloy parts have the characteristics of high strength, low density, good mechanical properties, good toughness and corrosion resistance, and extremely low thermal conductivity, but they are difficult to machine.

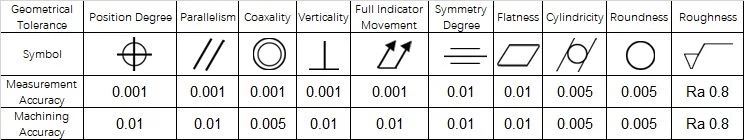

Production Precision:

Lead Time:

Sample 1 week, batch products 1-2 weeks

Product Specifications:

Titanium alloy parts CNC machining   according to customer requirements.

Titanium CNC Machining Process:

CNC machining, CNC lathe machining, grinding, milling, EDM, wire cutting.

Surface Treatment:

Plating (nickel plating, hard chrome plating, silver plating), e-coating, sandblasting, passivation (acidification), oxidation, polishing and other surface treatments.

Titanium CNC Machining Applications:

Medical, aviation, aerospace, chemical, petroleum development, metallurgy, light industry, electric power, seawater desalination, warship coastal power stations, daily appliances and other industries.

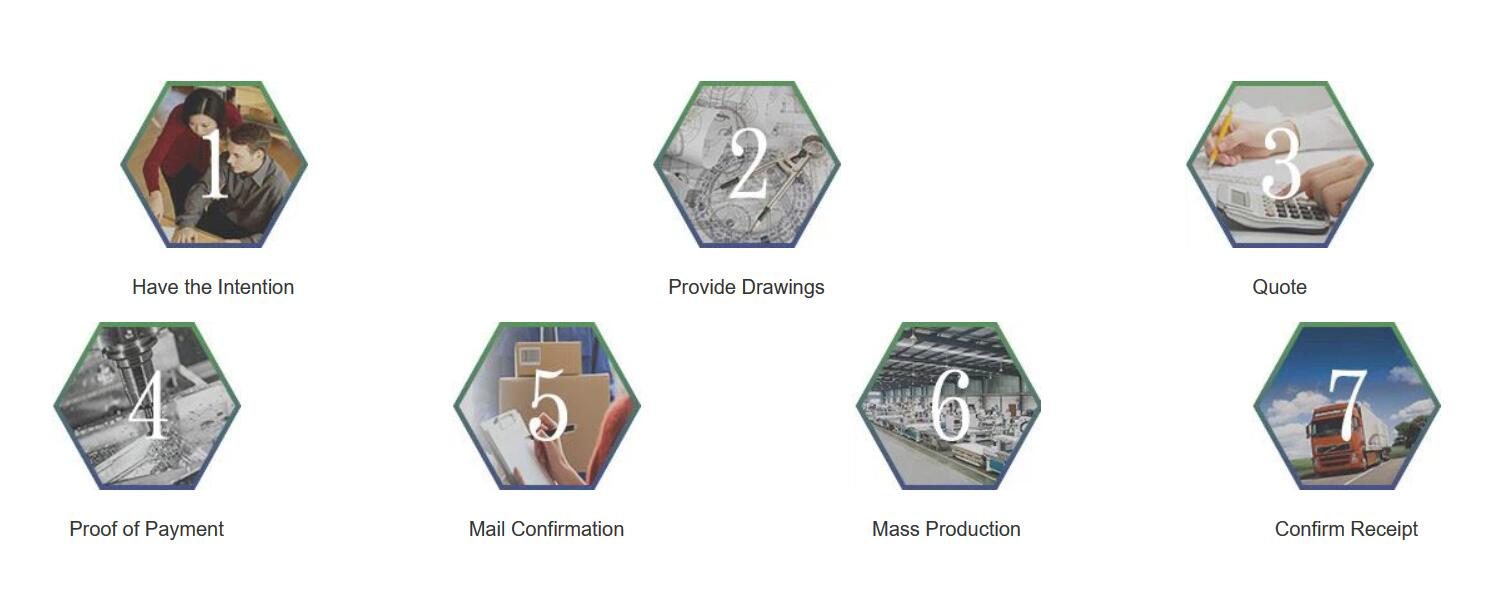

Ordering Process:

How does Jiuxie overcome the difficulties of CNC machining magnesium alloy?

1. When CNC machine tools process magnesium alloy, Special tools and taps for titanium alloy .

2. Engineers use positive geometry inserts to reduce cutting force, heat and workpiece deformation.

3. Keep approaching continuously during operation to avoid workpiece hardening.

4. Use high-pressure, high-volume cutting fluid to ensure thermal stability during machining, and prevent the workpiece surface and tool from deviation and damage due to high temperature.

5. During machining, keep the cutting edge sharp. Because using blunt tools is the cause of heat accumulation and wear, which easily leads to tool failure.

6. Use a large tool nose radius or chamfer cutting to allow as many inserts as possible to enter the cut, reducing cutting force and heat at each point, and preventing local damage.

The price of CNC machined parts depends on the following factors:

◆ Lead Time: The longer the part processing time, the higher the cost. Production time is usually the main cost reason for CNC machining.

◆ Surface and Structure: Machining multi-face products requires multiple setups for production, or 4-axis and 5-axis machining. Structural reasons such as: increased rib density increases production time cost; internal right angles increase corner cleaning cost.

◆ Materials and Surface Treatment: Different materials have different costs. For example, among metal materials, steel is the cheapest; magnesium alloy is the lightest; aluminum alloy has good performance; stainless steel has good performance but sharp edges; titanium alloy is expensive and difficult to machine. Surfaces requiring electroplating or anodizing have high requirements for the quality of raw materials, and their surface flatness must be good. Powder coating can cover slightly larger defects.

◆ Other Manufacturing Costs: When machining slender parts with extremely thin wall thickness, there is a risk of deformation or scrap. Non-standard precision holes and non-standard threads may require custom tools. Holes with angles require special fixtures or staged machining.

Our Guarantees:

1. Free design improvement plans.

2. Free detailed videos and photos during production.

3. Produce strictly according to drawing precision, with assembly measurement and testing functions, strict quality control, ensuring 0 return rate.

4. 99% of orders can guarantee delivery time.

5. Quotation within 1 day at the fastest

6. Delivery time as fast as 7 days.

7. Reply to inquiries within 2 hours.

8. The materials we use are the best.

9. 24-hour online service.

10. The lowest price for the same quality and service.

11. Cost-effective logistics arrangements.

12. The most suitable packaging method for different products.

If you are interested in any of our titanium CNC machining, or would like to discuss custom orders, please feel free to contact us. We look forward to establishing successful business relationships with new customers around the world in the near future.
